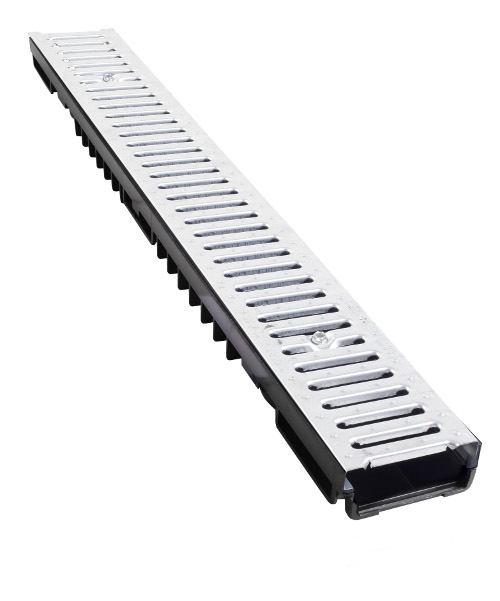

Low Profile Drainage Channel x 1m Galvanised Grate

Model:  DCLP908

Bielbet Low Proifle Drainage Channel x 1m A15 Galvanised Grate

• 130mm Wide x 55mm Deep
• Grating fitted with 2 bolts for security
• 3 cut outs each side for use as a corner or direction change
• 3 Bottom Outlet points per length - Bottom outlet only using DCLP916
• Slot dimensions- Length: 80mm   Width: 13mm
• EN1433 CE marked.

This channel is commonly used in pedestrian areas. For example in gardens, patios or pedestrian footfall areas

Compatible products:

• DC918-Debris/Odour Trap
• DCLP912-Low Profile Channel End Cap
• DCLP915-Low Profile Sump Unit Galvanised Grate
• DCLP916-Bottom Outlet Adaptor to 110mm
• DCLP911- Low Profile Inline Outlet to 75mm Pipe
